ISOSPIN Agarose Gel
- Manufacturer :
- Nippon Gene Co., Ltd.
- Storage Condition :
- Keep at RT.
- GHS :
-
- Structural Formula
- Label
- Packing
|
Comparison
|
Product Number
|
Package Size
|
Price
|
Availability
|
Certificate of Analysis
|
Purchase |
|---|---|---|---|---|---|---|
|
|
|
100Tests
|
|
In stock in Japan |
|
※Check availability in the US with the distributor.
Document
- Package Insert
-
- Spectral Data
-
- Certificate of Analysis
-
- Calibration Certificate
-
- Analytical Charts
-
Kit component
For 100 tests
| ISAE Buffer | 75 mL x 2 |
|---|---|
| ISW Buffer | 100 mL x 1 |
| ISE Buffer | 10 mL x 1 |
| Spin Column | 50 columns x 2 |
Description
ISOSPIN Agarose Gel is a kit for the extraction and purification of DNA fragments from agarose gels using a spin column.
DNA can be recovered in approximately 20 minutes from agarose gels, including those made with standard agarose (non–low-melting point) or high-concentration agarose (up to 5%).The purified DNA is suitable for various molecular biology applications, such as restriction enzyme digestion, sequencing, and cloning.
Product features
- Proprietary high performance spin column
- Efficient DNA recovery from high-concentration agarose gels (up to 5%)
- No need for cytotoxic organic solvents

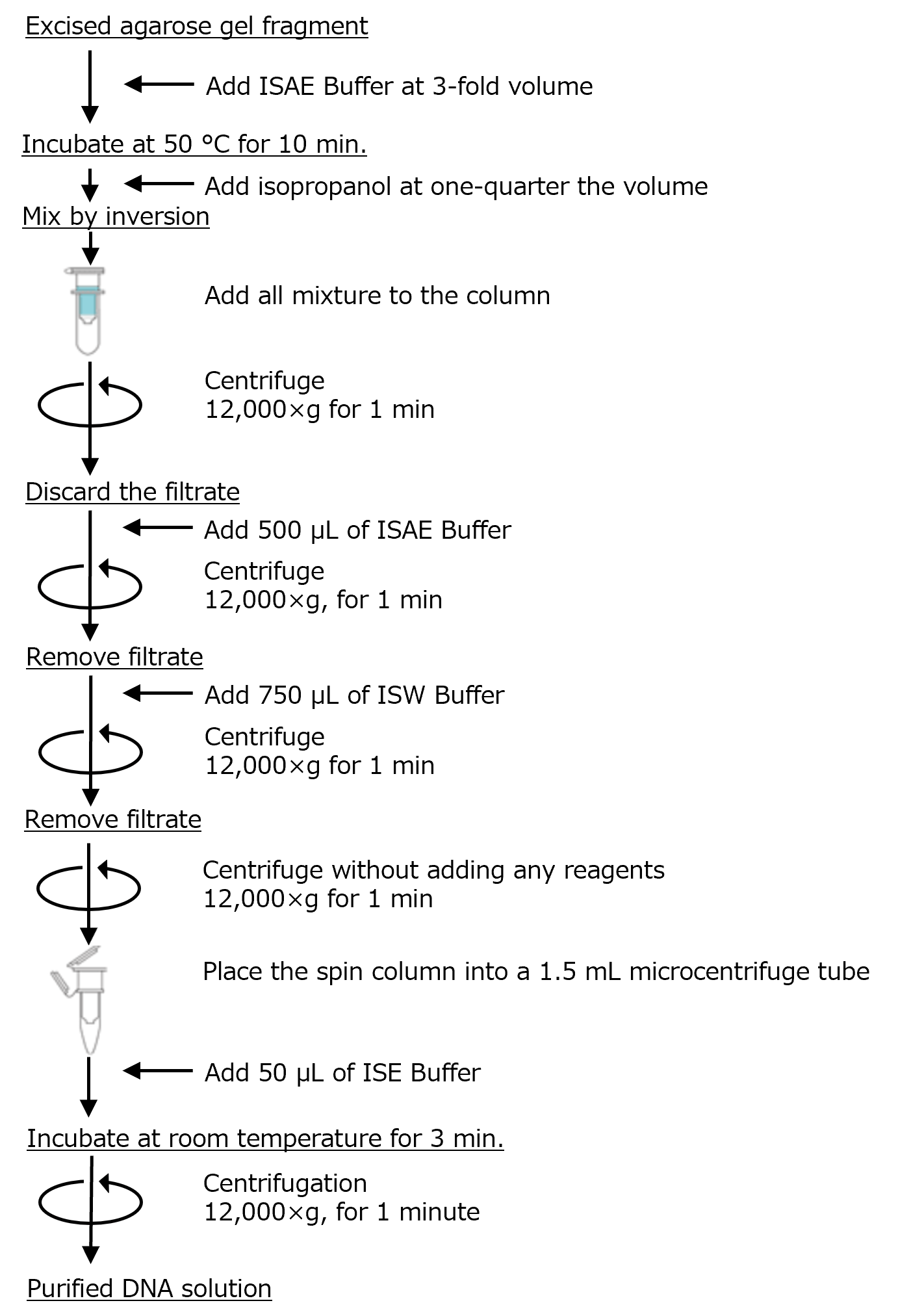

Protocol
Data

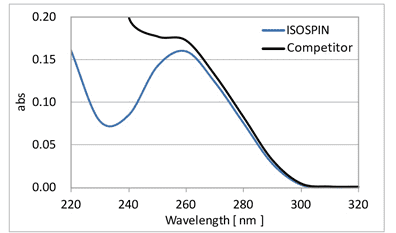

Absorbance measurement of purified DNA solution
DNA was extracted from 2% agarose gel fragments using the ISOSPIN Agarose Gel Kit and a competitor’s kit.
Result
High-purity DNA was purified using the ISOSPIN Agarose Gel Kit.

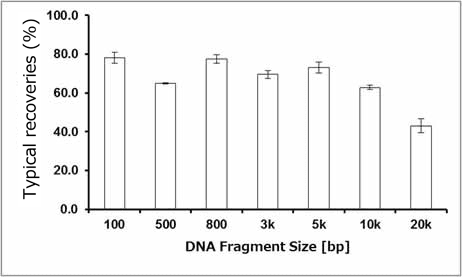

DNA Fragment Size–Dependent Recovery Rate
Result
The recovery rate ranged from 40% to 80%.
Overview / Applications
Property
Manufacturer Information
Alias
For research use or further manufacturing use only. Not for use in diagnostic procedures.
Product content may differ from the actual image due to minor specification changes etc.
If the revision of product standards and packaging standards has been made, there is a case where the actual product specifications and images are different.
